Aérospatiale Gazelle

Aérospatiale Gazelle

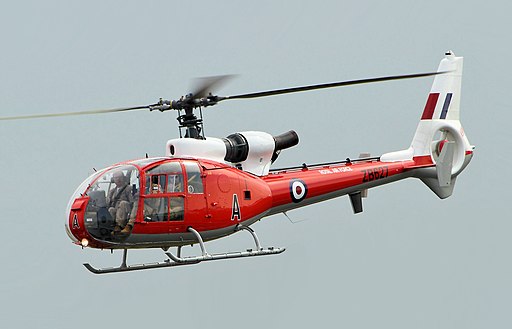

The Aérospatiale Gazelle SA 342 stands as a pinnacle of French helicopter engineering, renowned for its agility, versatility, and reliability. Developed as an evolution of the original Gazelle design, the SA 342 variant incorporates several upgrades and enhancements, including a more powerful engine and advanced avionics systems. With its sleek profile, distinctive fenestron tail rotor, and formidable performance capabilities, the SA 342 has become a mainstay in both military and civilian fleets around the world.

Powered by a Turbomeca Astazou engine, the Gazelle SA 342 boasts impressive speed and agility, making it well-suited for a wide range of missions. Whether conducting reconnaissance missions, troop transport, anti-tank warfare, or search and rescue operations, the SA 342 delivers unmatched performance and reliability in even the most demanding environments. Its compact size and nimble handling allow it to operate effectively in urban settings and confined spaces, providing operators with a versatile and adaptable platform for various mission requirements.

The Gazelle SA 342’s legacy extends beyond its military applications, with civilian operators utilizing it for tasks such as aerial photography, law enforcement, medical evacuation, and utility transport. Its ability to operate in diverse environments and climates, coupled with its ease of maintenance and operational flexibility, have cemented its reputation as a highly sought-after helicopter across the globe. With a proven track record of performance and reliability, the Aérospatiale Gazelle SA 342 continues to serve as a symbol of excellence in rotary-wing aviation.

Aérospatiale Gazelle parameters

Here are some parameters associated with the Aérospatiale Gazelle SA 342:

1. Type: Light utility and reconnaissance helicopter.
2. Dimensions:
   • Length: Approximately 10.04 meters (33 feet).
   • Height: Approximately 3.15 meters (10 feet 4 inches).
   • Main Rotor Diameter: Approximately 10 meters (33 feet).
3. Weight:
   • Empty Weight: Around 1,100 kilograms (2,425 pounds).
   • Maximum Takeoff Weight: Typically around 1,900 kilograms (4,189 pounds).
4. Performance:
   • Maximum Speed: Approximately 310 kilometers per hour (193 miles per hour).
   • Range: Typically around 670 kilometers (416 miles).
   • Service Ceiling: Approximately 5,400 meters (17,717 feet).
   • Rate of Climb: Roughly 9 meters per second (1,770 feet per minute).
5. Powerplant:
   • Engine: Typically equipped with a Turbomeca Astazou IIIA turboshaft engine, providing around 650 horsepower.
6. Capacity:
   • Crew: Usually consists of a pilot and co-pilot or observer.
   • Passengers: Can accommodate up to 4 passengers in addition to the crew, depending on configuration.
   • Cargo: Capable of carrying internal and external cargo loads, including stretchers for medical evacuation missions.
7. Avionics:
   • Avionics systems can vary depending on customer specifications and mission requirements but typically include navigation, communication, and surveillance equipment.
8. Armament:
   • Can be equipped with various armaments for military versions, including machine guns, rockets, anti-tank missiles, and air-to-air missiles, depending on the mission profile.
