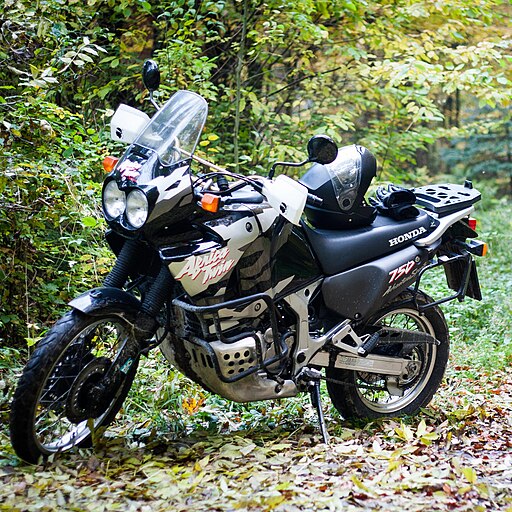

Honda XRV750
The Honda XRV750, commonly known as the Africa Twin, is a landmark dual-sport motorcycle produced from 1989 to 2003. Designed to honor Honda’s Paris-Dakar rally successes with the NXR-750 race bike, the XRV750 blends rugged off-road capability, torquey V-twin performance, and long-distance touring comfort into one versatile package.
Engine and Powertrain
Engine architecture and displacement
At its core sits a liquid-cooled 742 cc 52° V-twin with a single overhead camshaft operating three valves per cylinder. This configuration emphasizes low-end torque and mechanical simplicity, making it ideal for both technical trails and sustained highway cruising.
Bore, stroke and compression
The engine’s bore and stroke are 81.0 mm × 72.0 mm, paired with a 9.0 : 1 compression ratio. This long-stroke design delivers strong pulling power in the midrange without sacrificing reliability or requiring high-octane fuels.
Induction, ignition and fueling
A CDI ignition system with electronic advance ensures consistent spark timing under varied conditions, while fuel is metered through downdraft carburetors tuned for smooth throttle response. The clean-burning design keeps emissions in check without adding complexity to field servicing.
Transmission and final drive
Power flows through a five-speed gearbox calibrated for a broad spread of ratios—low first gear for technical off-road climbs and tall fifth for relaxed freeway running. A #530 chain final drive offers a balance of efficiency, ease of maintenance, and gearing adaptability for different riding styles.
Chassis and Dimensions
Frame and geometry
The XRV750 utilizes a single downtube frame with a steel double-loop cradle of rectangular section tubing. This robust structure provides predictable flex characteristics, essential for stability over rough terrain and planted handling at speed.
Suspension travel and adjustability
Up front, a 43 mm air-assisted telescopic fork delivers 220 mm of wheel travel. At the rear, Honda’s Pro-Link monoshock setup offers 214 mm of travel with preload and compression damping adjustments. Together, they soak up big hits while keeping the wheels in contact for traction.
Wheels, tires and brakes
Classic dual-sport sizing comes with a 21-inch front wheel shod in 90/90-21 rubber and a 17-inch rear wheel wearing a 140/80-17 tire. Braking is handled by twin 276 mm front discs with two-piston calipers and a single 256 mm rear disc with a one-piston caliper, offering strong, fade-resistant stopping power on mixed surfaces.
Performance and Fuel Economy
Power and torque output
The engine delivers 45.3 kW (60.7 hp) at 7,500 rpm and 62.7 N·m (46.2 ft-lb) at 6,000 rpm. Peak torque early in the rev range provides effortless roll-on acceleration, making the Africa Twin equally adept at trail work and loaded touring.
Fuel capacity and range
A generous 23 L fuel tank (including a 3 L reserve) affords long days in the saddle without constant refueling stops. Combined fuel consumption averages around 5.5–6 L/100 km under mixed riding, yielding a practical range of over 350 km between fill-ups.
Ergonomics and Practicality
Rider position and comfort
An 860 mm seat height positions the rider for exceptional ground clearance and control when standing on the pegs. The upright ergonomics, broad handlebar sweep, and long dual-seat support two-up journeys and extended off-road sections without fatigue.
Storage and accessories
While the XRV750 does not feature integrated luggage, its pillion grab rail and rear rack mounting points accommodate aftermarket top cases and soft luggage. A durable bash plate, handguards, and skid plates are commonly fitted to protect vital components on rough expeditions.
Electrical System and Instrumentation
The Africa Twin’s simple electrical layout powers a halogen headlight, taillight, turn signals, and an analog instrument cluster with speedometer, odometer/trip meters, and warning lamps. A compact CDI box and reliable stator ensure robust charging for lighting and accessory needs.
Maintenance and Reliability
Service intervals and durability
Routine maintenance includes oil and filter changes every 6,000 km, valve clearances checked at 12,000 km, and suspension inspections annually. The air-assisted fork and Pro-Link shock require minimal specialized tools, making the XRV750 owner-friendly for field repairs.
Parts availability and common upgrades
Thanks to its popularity, OEM spares remain widely available, and a vibrant aftermarket offers upgraded suspension internals, protective guards, luggage solutions, and modern LED lighting kits—ensuring the Africa Twin continues to serve adventurers decades after production ended.
Specification Summary
- Engine type: 742 cc liquid-cooled 52° V-twin, SOHC, 3 valves per cylinder
- Bore × stroke: 81.0 mm × 72.0 mm
- Compression ratio: 9.0 : 1
- Power: 45.3 kW (60.7 hp) @ 7,500 rpm
- Torque: 62.7 N·m (46.2 ft-lb) @ 6,000 rpm
- Ignition: CDI with electronic advance
- Transmission: 5-speed manual
- Final drive: Chain (#530)
- Frame: Single downtube, steel double-loop cradle
- Front suspension: 43 mm air-assisted fork, 220 mm travel
- Rear suspension: Pro-Link monoshock, 214 mm travel, adjustable
- Front brakes: Twin 276 mm discs, 2-piston calipers
- Rear brake: Single 256 mm disc, 1-piston caliper
- Wheels/tires: 21″ front (90/90-21), 17″ rear (140/80-17)
- Seat height: 860 mm
- Fuel capacity: 23 L (3 L reserve)
- Production years: 1989–2003
Conclusion
The Honda XRV750 Africa Twin remains a celebrated benchmark for dual-sport motorcycles, offering a harmonious blend of rally-inspired engineering, real-world reliability, and adaptable chassis dynamics. Its enduring legacy is cemented by a robust aftermarket, enthusiastic owner community, and a design ethos that prioritizes versatility above all else.
