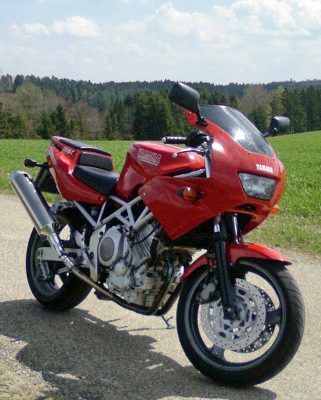

Yamaha TRX 850
The Yamaha TRX 850, produced in the late 1990s, holds a unique position in Yamaha’s lineup as a sport-touring motorcycle that aimed to blend performance with comfort. Powered by a liquid-cooled, 849cc parallel-twin engine, the TRX 850 offered a distinctive alternative to the more common inline-four configurations. The 5-valve per cylinder design contributed to the engine’s efficiency and responsiveness, delivering approximately 80 horsepower and 77 Nm of torque. This powerplant was mated to a 5-speed constant mesh transmission, providing riders with a versatile range for both spirited rides and highway cruising.
In terms of design, the Yamaha TRX 850 boasted a sport-touring aesthetic with a tubular steel backbone frame, dual headlights, and a dual exhaust system. The bike featured a comfortable riding position, making it suitable for long-distance journeys, and the monoshock rear suspension with linkage ensured a balanced and controlled ride. While the TRX 850 had a relatively short production run, its unique parallel-twin configuration and sport-touring characteristics have earned it a dedicated following among motorcycle enthusiasts who appreciate its blend of performance and touring capabilities.
Yamaha TRX 850 parameters
Yamaha TRX 850 Parameters:
- Engine:
- Type: Liquid-cooled, 4-stroke, DOHC, 5-valve, parallel-twin
- Displacement: 849 cc
- Bore x Stroke: 89.5 mm x 67.5 mm
- Compression Ratio: 10.5:1
- Fuel System: Carburetors (model-dependent)
- Performance:
- Maximum Power: Approximately 80 hp (59.7 kW) @ 7,500 rpm
- Maximum Torque: Approximately 77 Nm (56.8 lb-ft) @ 6,000 rpm
- Transmission: 5-speed constant mesh
- Chassis:
- Frame Type: Steel tubular backbone
- Suspension:
- Front: Telescopic fork
- Rear: Monoshock with linkage
- Brakes:
- Front: Dual hydraulic disc brakes
- Rear: Single hydraulic disc brake
- ABS: Not typically available
- Wheels and Tires:
- Front Tire: 120/70-ZR17
- Rear Tire: 160/60-ZR17
- Wheelbase: 1,440 mm (56.7 inches)
- Dimensions:
- Length: 2,100 mm (82.7 inches)
- Width: 720 mm (28.3 inches)
- Height: 1,100 mm (43.3 inches)
- Seat Height: 810 mm (31.9 inches)
- Ground Clearance: 140 mm (5.5 inches)
- Fuel Capacity: 18 liters (4.8 gallons)
- Weight:
- Dry Weight: Approximately 191 kg (421 lbs)
- Other Features:
- Dual exhaust system
- Dual headlights
- Analog instrumentation
- Sport-touring design
These specifications are general and may not reflect variations between different model years or regions.
