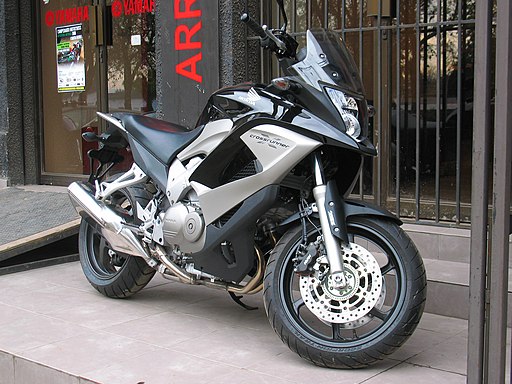

Honda Crossrunner

The Honda Crossrunner arrived in 2011 as a versatile adventure-sport motorcycle designed to bridge the gap between naked roadsters and full-bore adventure bikes. With upright ergonomics, a torquey V4 engine, and a semi-faired body, the Crossrunner offers spirited performance on winding asphalt and confidence-inspiring poise on gravel tracks. This article unpacks the Crossrunner’s engineering highlights, performance figures, maintenance essentials, and spec-by-spec breakdown for riders seeking a do-it-all machine.

Design Philosophy and Model Evolution

Honda conceived the Crossrunner to satisfy riders who crave spirited sportbike dynamics without sacrificing upright comfort and mild off-road capability. Key development objectives included:

• Narrow powerplant packaging for agile handling
• Ergonomic adjustable windscreen and handlebar reach
• Balanced chassis geometry for on-road agility and mild trail use
• Adaptable suspension to suit solo riders or two-up touring

Since its introduction, the Crossrunner has evolved through incremental updates to engine mapping, electronics, and styling while retaining its core V4 character and dual-purpose appeal.

Engine Architecture

Configuration and Displacement

The heart of the Crossrunner is a liquid-cooled, 25° longitudinal V4 engine derived from the VFR1200 series. Core parameters include:

• Displacement: 1,237 cc
• Bore × Stroke: 81 mm × 60.6 mm
• Compression Ratio: 11.6 : 1

This layout delivers perfect primary balance, low vibration, and a narrow crankshaft width to optimize chassis centralization.

Valvetrain and Induction

• Head: DOHC per bank, four valves per cylinder (16 total)
• Cam Drive: Precision roller chain with hydraulic tensioners
• Fuel System: Sequential multi-port electronic injection with 44 mm throttle bodies
• Electronic Controls: Throttle-by-wire (Honda Selectable Torque Control)

Advanced injection mapping smooths throttle transitions under load, while the torque control system offers rider-selectable levels of traction intervention.

Lubrication and Cooling

• Oil Capacity: 4.2 L including filter
• Oil System: Wet sump with full-flow spin-on filter
• Cooling System: 4-row aluminum radiator with dual thermostatic fans

An integrated oil cooler and optimized coolant circuits maintain stable temperatures during extended high-load riding.

Transmission and Final Drive

• Transmission: Six-speed constant-mesh gearbox
• Clutch: Assisted slipper clutch, cable-actuated
• Final Drive: 520 O-ring chain; front sprocket 18T, rear sprocket 47T

Close-ratio gearing keeps the V4 in its broad torque band, while the slipper function reduces rear-wheel hop during aggressive downshifting.

Chassis and Ergonomics

Frame and Geometry

• Frame Type: Aluminum twin-spar perimeter
• Wheelbase: 1,530 mm
• Rake / Trail: 25.5° / 107 mm
• Seat Height: 830–850 mm (adjustable)
• Dry Weight: 236 kg

The perimeter frame stiffly links headstock and swingarm pivot for precise turn-in, and adjustable seat and footpeg positions accommodate different rider sizes.

Ergonomic Features

• Handlebar: 840 mm wide, adjustable reach via risers
• Windscreen: Electrically adjustable over 60 mm travel
• Windscreen Profile: Tapered design to minimize turbulence at highway speeds

Comfort-focused cockpit geometry balances sport posture with long-distance touring capability.

Suspension and Braking

Front Suspension

• Forks: 45 mm Showa cartridge-style inverted
• Adjustments: Preload, compression, rebound
• Travel: 150 mm

Rear Suspension

• Swingarm: Pro-Link single-shock aluminum
• Shock: Remote reservoir Showa unit
• Adjustments: Spring preload, compression, rebound
• Travel: 140 mm

Progressive linkage rates yield supple response over small bumps and rising support in hard cornering.

Brakes and Wheels

• Front Brakes: Dual 310 mm discs; Nissin four-piston radial-mount calipers
• Rear Brake: Single 256 mm disc; Nissin two-piston caliper
• Wheel Size: 17 × 3.50 in front; 17 × 5.50 in rear
• Tire Fitment: 120/70 ZR17 front; 190/50 ZR17 rear

High-stiffness calipers and large rotors deliver confident, fade-resistant braking, while the rear disc offers smooth, predictable stopping power.

Electronic Aids

• ABS: Dual-channel anti-lock braking system
• HSTC: Honda Selectable Torque Control with three modes plus off
• Power Modes: Sport, Standard, Rain
• Display: Full-color TFT dashboard with gear indicator, fuel economy gauge, shift light

Integrated electronics enhance safety and allow riders to tailor engine character and traction intervention to road conditions.

Performance Figures

• Peak Power: 127 hp @ 10,000 rpm
• Peak Torque: 126 Nm @ 7,250 rpm
• Top Speed: 230 km/h
• 0–100 km/h: 3.7 s
• Fuel Economy: 5.9 L/100 km (mixed riding)
• Fuel Capacity: 18.5 L (including 4 L reserve)

Strong midrange torque makes the Crossrunner feel agile from low revs, while peak horsepower provides brisk top-end acceleration.

Maintenance and Servicing Strategies

• Valve Clearance: Inspect every 16,000 km; shim adjustment required
• Oil Change: Replace oil and filter every 12,000 km or annually
• Chain Care: Lube and adjust every 1,000 km; inspect sprockets for wear
• Brake Fluid: Flush dual-circuit system every two years
• Suspension: Service fork and shock seals every 24,000 km or when damping deteriorates

Following these intervals preserves ride quality, engine reliability, and component longevity under varied riding conditions.

Technical Specification Summary

Legacy and Upgrades

Since its launch, the Crossrunner has earned praise for versatile performance and reliability. Popular aftermarket enhancements include:

• Quick-shifter installations for seamless upshifts
• LED lighting kits to reduce electrical load and improve visibility
• High-flow air filters and slip-on mufflers for deeper sound and marginal power gains
• Adjustable rearsets to refine ergonomics for sporting rides

A robust community shares setup guides, mapping files, and touring routes that showcase the Crossrunner’s dual-purpose capability.

Conclusion

The Honda Crossrunner combines a potent V4 powerplant, adaptable electronics, and adventure-style ergonomics into a single, do-everything machine. Its precise chassis, generous torque, and electronic safety nets cater equally to canyon-carving days and cross-country tours. With routine maintenance and targeted upgrades, the Crossrunner remains a compelling choice for riders seeking sportbike thrills without sacrificing touring comfort.
