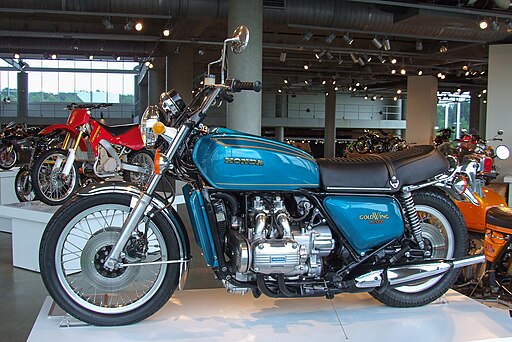

The Honda Gold Wing GL1000, introduced in 1975, marked the beginning of Honda’s legendary Gold Wing touring series. Designed as a luxury touring motorcycle, it combined smooth inline-four engine performance, advanced comfort features, and long-distance reliability. The GL1000 set a new benchmark in the touring segment, offering riders a capable and comfortable motorcycle capable of handling both highways and extended cross-country journeys.
Engine Architecture and Performance
The GL1000 is powered by a liquid-cooled, horizontally opposed flat-four engine, commonly referred to as a “boxer” configuration. This layout contributes to a low center of gravity, reduced vibration, and excellent balance.
Key engine specifications include:
-
Displacement: 999 cc
-
Configuration: Flat-four, horizontally opposed, liquid-cooled
-
Bore x Stroke: 64 mm x 61 mm
-
Compression Ratio: 9.0:1
-
Valve Train: SOHC, 2 valves per cylinder
-
Carburetion: Four Keihin constant-velocity carburetors
-
Ignition: Electronic CDI
-
Power Output: Approximately 80 horsepower at 7,500 rpm
-
Torque: Approximately 85 Nm at 6,000 rpm
The engine delivers smooth, linear power suitable for both relaxed cruising and high-speed touring. Its boxer layout reduces engine vibration and improves rider comfort over long distances.
Transmission and Drivetrain
The GL1000 features a five-speed manual transmission with a shaft drive, emphasizing low-maintenance operation and smooth power delivery.
-
Transmission: 5-speed constant mesh
-
Clutch: Multi-plate wet type
-
Final Drive: Shaft drive with enclosed housing
-
Gear Ratios: Balanced for city riding and highway cruising
The shaft drive eliminates the need for frequent chain adjustments, providing reliable long-term performance and reduced maintenance.
Chassis and Frame
Honda designed the GL1000 chassis to provide stability, comfort, and handling suited for long-distance touring.
Chassis specifications:
-
Frame Type: Steel double-cradle
-
Wheelbase: 1,530 mm
-
Rake/Trail: 29 degrees / 112 mm
-
Dry Weight: Approximately 260 kg
-
Seat Height: 780 mm
The frame geometry provides straight-line stability, while the long wheelbase ensures comfort when carrying a passenger or luggage.
Suspension System
The GL1000 suspension is tuned for touring comfort and handling stability.
Front Suspension:
-
Type: Telescopic fork
-
Travel: 130 mm
-
Adjustability: Non-adjustable
Rear Suspension:
-
Type: Twin shock absorbers with preload adjustment
-
Travel: 110 mm
The suspension setup provides a smooth ride on uneven surfaces and reduces rider fatigue during long trips.
Braking Components
Honda equipped the GL1000 with reliable braking systems suitable for its touring purpose.
Front Brakes:
-
Dual hydraulic discs
-
Diameter: 280 mm
-
Calipers: Two-piston
Rear Brake:
-
Drum brake
-
Diameter: 180 mm
This braking combination offers adequate stopping power while maintaining consistent performance for touring applications.
Wheels and Tires
The wheels and tires of the GL1000 are designed to provide stability and comfort for long-distance riding.
-
Front Wheel: 18-inch steel or alloy rim
-
Rear Wheel: 16-inch steel or alloy rim
-
Front Tire: 3.50-18
-
Rear Tire: 4.00-16
The tire dimensions and wheel design offer a balance between grip, durability, and long-distance comfort.
Fuel System and Efficiency
The GL1000 prioritizes smooth fuel delivery and reliability over outright performance.
-
Fuel Tank Capacity: 22 liters (approximately 5.8 gallons)
-
Fuel Delivery: Four constant-velocity carburetors with balanced fuel metering
-
Fuel Economy: 35–40 mpg depending on riding conditions
The fuel system allows extended touring range without frequent refueling stops, ideal for long-distance rides.
Bodywork and Ergonomics
The GL1000’s design emphasizes rider comfort and touring practicality.
-
Fairing: Optional full front fairing with windscreen
-
Seat: Wide, padded, and stepped to accommodate rider and passenger
-
Handlebars: Upright position for relaxed ergonomics
-
Instrumentation: Analog speedometer, tachometer, fuel gauge, oil pressure, and indicator lights
The ergonomics and bodywork reduce rider fatigue and improve wind protection during long-distance rides.
Electrical System
The GL1000 features a robust and reliable electrical system suitable for touring accessories.
-
Battery: 12V maintenance-free
-
Lighting: Halogen headlamp, turn indicators, and tail/brake lights
-
Ignition: Electronic CDI with self-canceling indicators
-
Optional Features: Accessory power outlets for touring equipment
The electrical system ensures reliable performance under varying conditions and supports additional touring gear.
Comfort and Touring Features
The GL1000 was one of the first motorcycles to incorporate features specifically for touring comfort.
-
Passenger Grab Handles: Integrated into the rear frame
-
Luggage: Optional side panniers and rear trunk
-
Wind Protection: Adjustable windscreen (on fairing models)
-
Seat Comfort: Thick padding and ergonomically contoured
These features made the GL1000 a practical and comfortable choice for long-distance motorcycling.
Maintenance and Reliability
Honda designed the GL1000 for low-maintenance touring use. The shaft drive, durable air-cooled components, and simple carburetor setup allow for minimal routine service. Valve adjustments and general engine maintenance are straightforward, contributing to its reputation for reliability.
Legacy and Influence
The GL1000 established the foundation for the Honda Gold Wing series, which continues to be a benchmark in luxury touring motorcycles. Its combination of smooth engine performance, long-distance comfort, and advanced features influenced subsequent models, including the GL1100, GL1200, and modern Gold Wings.
Conclusion
The Honda Gold Wing GL1000 is a landmark touring motorcycle that blends smooth flat-four performance with comfort, reliability, and practicality. Its shaft drive, spacious ergonomics, and touring-oriented design set the standard for long-distance motorcycles and cemented Honda’s reputation in the touring segment. With its innovative features and enduring design, the GL1000 remains an iconic and respected motorcycle in Honda’s lineup.
