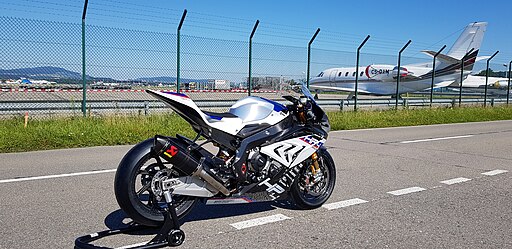

The BMW HP4 Race is a striking example of modern engineering in the realm of high-performance motorcycles. Developed as a track-focused, limited-edition machine, it represents BMW Motorrad’s pinnacle of racing technology adapted for road legality. Unlike standard superbikes, the HP4 Race emphasizes extreme weight reduction, advanced aerodynamics, and precision handling. Its design philosophy centers on delivering an immersive riding experience that prioritizes agility, acceleration, and braking performance, making it an ideal candidate for experienced riders who seek both thrill and technological sophistication. The motorcycle is a showcase of carbon fiber construction, race-spec electronics, and meticulous attention to component selection, positioning it as one of the most technologically advanced production motorcycles in the world.
Engine and Performance
At the heart of the BMW HP4 Race lies a 999cc inline-four engine derived from BMW’s S1000RR, tuned for peak track performance. It features a high-revving design capable of producing around 215 horsepower at 13,900 rpm and a maximum torque of approximately 115 Nm at 10,000 rpm. The engine employs BMW’s sophisticated double overhead camshaft (DOHC) architecture, paired with a ride-by-wire throttle system to ensure instantaneous response and precise power delivery. Lightweight components such as forged pistons, titanium connecting rods, and a race-tuned exhaust system contribute to the engine’s high power-to-weight ratio, enhancing acceleration and top-end performance. This engine is complemented by an advanced six-speed gearbox, optimized for rapid shifts and minimal energy loss during acceleration, enabling riders to exploit the full potential of the HP4 Race on a racetrack.
Chassis and Frame
The BMW HP4 Race sets itself apart with a groundbreaking carbon fiber monocoque frame, a rarity in production motorcycles. This frame design not only reduces overall weight to around 171 kilograms dry but also increases rigidity and stability, which translates into exceptional handling at high speeds. The frame’s construction incorporates aerospace-grade carbon fiber layers, strategically placed to maximize torsional stiffness while allowing flex where needed to absorb track-induced vibrations. The subframe and swingarm are also crafted from carbon fiber, further reducing weight without compromising structural integrity. This focus on lightweight materials ensures that the HP4 Race delivers an unparalleled power-to-weight ratio, making it extremely responsive to rider inputs and highly agile in cornering scenarios.
Suspension and Braking
The suspension setup on the BMW HP4 Race is fully adjustable and designed for track dominance. The front suspension utilizes Öhlins inverted forks with electronically adjustable compression and rebound damping, allowing precise tuning for different track conditions. The rear features a fully adjustable Öhlins TTX36 monoshock with preload, compression, and rebound settings, ensuring optimal traction and stability under hard acceleration and braking. Braking is handled by Brembo Stylema monobloc calipers paired with 320mm dual discs at the front and a 220mm disc at the rear. These components deliver exceptional stopping power and feel, crucial for high-speed track riding. The brake system is complemented by an advanced ABS and traction control system with multiple modes, allowing riders to balance raw stopping power with safety and precision.
Electronics and Rider Assistance
The HP4 Race integrates a suite of cutting-edge electronics that enhance performance without diluting the riding experience. The motorcycle features BMW’s Race ABS Pro system, dynamic traction control (DTC), launch control, and wheelie control, all configurable through a full-color TFT display. The electronics package is race-oriented, allowing expert riders to tailor the bike’s response to their style, track conditions, and specific laps. Additional features include pit-lane speed limiter, quick-shifter for clutchless up and downshifts, and a data-logging system that records acceleration, lean angles, and lap times. These systems are lightweight and designed to complement the bike’s mechanical precision rather than interfere with it, ensuring the rider maintains full control over the HP4 Race’s extraordinary capabilities.
Wheels, Tires, and Aerodynamics
One of the most notable features of the HP4 Race is its carbon fiber wheels, which reduce unsprung weight significantly and improve handling response. The front wheel measures 3.5 inches in width, while the rear is 6.0 inches, supporting Michelin Power Cup 2 tires for maximum grip and stability under extreme lean angles. The aerodynamic profile of the bike includes a minimalistic fairing designed to reduce drag while providing sufficient airflow for engine cooling. The front cowl, windscreen, and tail section are all constructed from lightweight materials and shaped to optimize airflow around the rider, enhancing high-speed stability and cornering precision. Combined, these elements create a motorcycle that feels both planted and responsive, capable of maintaining composure even under aggressive track conditions.
Production and Exclusivity
The BMW HP4 Race is produced in extremely limited numbers, with only 750 units manufactured worldwide. Each bike is individually numbered and comes with bespoke components that can be tailored to the owner’s specifications, such as adjustable suspension settings and personalized graphics. This limited production run, coupled with its cutting-edge technology, positions the HP4 Race as both a collector’s item and a high-performance track machine. BMW Motorrad emphasizes that while the bike is road legal in certain regions, its true potential is unlocked on a racetrack, where its full suite of performance features can be exploited safely.
Conclusion
The BMW HP4 Race is a masterclass in engineering, combining race-level performance with production motorcycle practicality. Its lightweight carbon fiber construction, high-output engine, race-spec suspension, and advanced electronics create an unparalleled riding experience that blends precision, power, and agility. Designed for riders who demand the utmost in performance and technology, the HP4 Race stands as a testament to BMW Motorrad’s commitment to innovation, performance, and craftsmanship in the realm of superbikes. Its rarity and technical sophistication make it one of the most coveted machines among motorcycle enthusiasts and professional racers alike.
