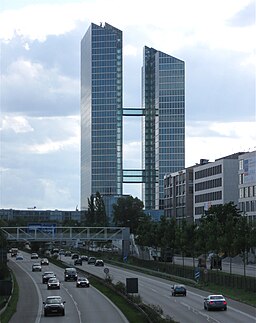

Highlight Towers
The Highlight Towers in Munich are a striking pair of skyscrapers that redefine the city’s skyline with their sleek geometry and advanced engineering. Located in the Parkstadt Schwabing district, these towers were completed in 2004 and designed by the renowned architectural firm Murphy/Jahn. Their bold presence and technical sophistication make them a benchmark for high-rise office complexes in Europe.
Architectural Composition and Dimensions
Tower Specifications
- Tower I: 126 meters tall, 33 floors
- Tower II: 113 meters tall, 28 floors
- Total Floor Area: Approximately 74,000 m²
- Design Style: Modernist with minimalist detailing
Spatial Configuration
- Offset Positioning: Towers are slightly staggered to create visual dynamism
- Skywalks: Two glass-and-steel bridges connect the towers at the 7th and 9th floors
- Base Structures: Two low-rise buildings house a hotel and conference facilities
Structural Engineering and Foundation
Load-Bearing System
- Core Material: Reinforced concrete with steel composite framing
- Skywalk Support: Steel trusses with high-tensile connections
- Floor Load Capacity: 4 kN/m² for office use
Foundation Design
- Pile System: 150 drilled piles reaching depths of 30 meters
- Base Slab: 1.2-meter-thick reinforced concrete platform
- Soil Conditions: Built on former floodplain with engineered stabilization
Façade and Envelope Technology
Glazing and Insulation
- Façade Area: Over 15,000 m² of low-emissivity double glazing
- Frame Material: Slim aluminum profiles with thermal breaks
- Solar Control: External louvers on sun-facing elevations
Skywalk Features
- Dimensions: Each bridge measures 18 × 4 meters
- Lighting: Integrated LED strips for nighttime illumination
- Structural Integrity: Designed to withstand wind loads and thermal expansion
Interior Layout and Vertical Circulation
Office Configuration
- Floor Plate: ~2,200 m² of usable space per level
- Flexibility: Modular partitions allow open-plan or cellular layouts
- Technical Infrastructure: Raised floors and ceiling service channels
Elevator System
- Passenger Elevators: 14 units with Destination Dispatch control
- Freight Elevators: 2 units with 2,500 kg capacity
- Speed: Up to 6 m/s
- Wait Time: Maintained under 30 seconds during peak hours
Sustainability and Energy Efficiency
Environmental Certifications
- LEED Target: Platinum rating achieved through integrated systems
- Photovoltaics: Rooftop solar panels with 150 kWp capacity
Water and Green Systems
- Rainwater Harvesting: 200 m³ underground tanks for irrigation and toilets
- Green Terraces: Landscaped roof areas with native grasses and succulents
- Air Quality: Enhanced through vegetated conservatories and filtration systems
Building Management and Smart Technologies
Automation and Monitoring
- BMS Platform: Centralized control of HVAC, lighting, and security
- Real-Time Analytics: Energy usage, occupancy, and fault detection
- Access Control: RFID and biometric systems for secure zones
Fire Safety and Noise Control
- Drywall Systems: Fire-rated partitions throughout
- Acoustic Insulation: Multi-layer glazing and sound-absorbing materials
Urban Integration and Amenities
Location and Connectivity
- Address: Mies-van-der-Rohe-Straße, Parkstadt Schwabing
- Transit Access: Direct links to S-Bahn, tram, and metro lines
- Pedestrian Zones: Promenades and cycle paths connect to surrounding districts
On-Site Facilities
- Hotel: 160-room four-star accommodation
- Conference Center: Flexible meeting spaces and showrooms
- Retail and Dining: Cafés, shops, and business lounges at ground level
Conclusion
The Highlight Towers are more than just office buildings—they are a fusion of architectural elegance and engineering precision. Their twin-tower configuration, advanced façade systems, and commitment to sustainability position them among Europe’s most innovative high-rise developments. As Munich continues to evolve, the Highlight Towers remain a symbol of the city’s forward-thinking spirit and design excellence.
