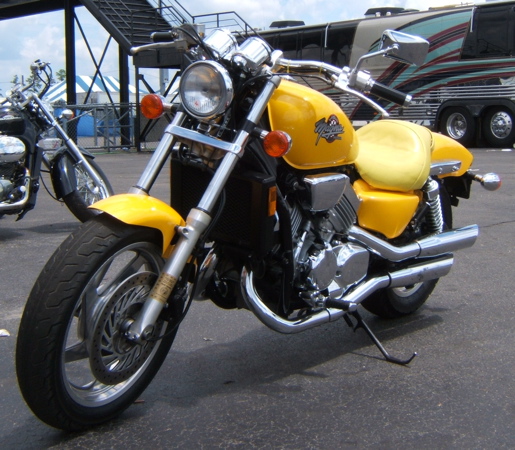

Honda Magna

Honda Magna

The Honda Magna burst onto the motorcycle scene in the early 1980s as a groundbreaking power cruiser, blending sportbike technology with cruiser styling. Powered by a compact 748 cm³ liquid-cooled V4 engine, the Magna offered exhilarating performance wrapped in a long, low chassis. Over three generations and two decades of production, it earned a devoted following for its mix of torque-rich thrust, muscular styling, and dependable Honda engineering.

Origins and Evolution

Birth of a Power Cruiser

Honda sought to bridge the gap between its high-revving V4 sportbikes and the laid-back cruiser market. Engineers transplanted the V-four architecture from the VFR750F Interceptor into a cruiser chassis, tweaking cam profiles, exhaust routing, and frame geometry. The result was the VF750C Magna, introduced in 1982 with a distinctive four-into-four exhaust layout and a 13 L fuel tank suited to weekend blasts.

Refinements Through Generations

• Second Generation (1984–1987): Magna styling grew more muscular. Fuel capacity climbed to 17 L, and power output edged higher through revised ignition timing and carburation.
• Super Magna (1987–1988): A popular nickname for models receiving an 80 bhp engine tune, reshaped airbox, and updated graphics.
• Late-Model VF750C2 (1994–2003): A final evolution featured revamped bodywork, four-into-two exhausts, and subtle chassis tweaks for modern comfort and compliance.

Design and Ergonomics

Chassis and Frame

The Magna’s backbone is a tubular steel double-cradle frame that doubles as an oil reservoir. This “oil-in-frame” concept lowers the center of gravity and contributes to the bike’s planted feel. A long 1 651 mm wheelbase delivers stability at speed while offering a confident rake of 32° for relaxed steering.

Rider Position

• Seat Height: 740 mm
• Handlebar Reach: Moderate pullback with wide grips for cruiser comfort
• Footpeg Position: Mid-mount arrangement for a balanced rider stance

The combination of low seat height, swept handlebars, and forward-leaning footpegs strikes a balance between upright comfort and sporty control.

Powertrain and Performance

V4 Engine Architecture

• Displacement: 748 cm³
• Configuration: 90° V4, liquid-cooled, four-stroke
• Valvetrain: DOHC, 4 valves per cylinder (16 total)
• Bore × Stroke: 70.0 mm × 48.6 mm
• Compression Ratio: 10.8 : 1

Mechanical rockers actuate the camshafts, minimizing reciprocating mass and ensuring rev-happy response. A semi-dry sump lubrication system maintains consistent oil pressure during hard acceleration and lean angles.

Fuel Delivery and Ignition

• Carburetors: Four Keihin CV 32 mm
• Ignition: Transistorized CDI
• Emissions: Engineered to meet mid-’80s standards without sacrificing throttle response

Smooth fuel metering and precise spark timing give the Magna a broad torque curve, with strong pull from 3 000 rpm up through an 8 000 rpm redline.

Suspension and Handling

Front Forks

• Type: 41 mm air-assisted telescopic forks
• Travel: 120 mm
• Anti-Dive: Four-way adjustable TRAC system

Riders can fine-tune air preload and anti-dive characteristics to suit solo or two-up loads, preserving geometry under braking.

Rear Shocks

• Setup: Twin shock absorbers with adjustable spring preload
• Travel: 100 mm

Although rooted in cruiser tradition, the Magna’s suspension delivers composed damping and predictable feedback through sweeping bends and mid-corner bumps.

Braking and Wheels

Brake System

• Front: Dual 296 mm discs with two-piston sliding calipers
• Rear: Single 296 mm disc with single-piston caliper

Progressive caliper bite and large rotor diameters ensure confident stopping power commensurate with the Magna’s performance.

Wheel and Tire Specs

• Front Wheel: 18 × 3.00 cast alloy; tire 100/90-18
• Rear Wheel: 15 × 5.00 cast alloy; tire 150/80-15

The combination of cruiser-style wheels and modern rubber delivers ample grip and stylish proportions.

Electronics and Instrumentation

Honda equipped the Magna with straightforward yet effective instrumentation:

• Analogue Speedometer and Tachometer
• Fuel Level Gauge
• Dual Trip Meters
• Indicator Lights for Neutral, High Beam, Oil Pressure, and Turn Signals

Optional tethered immobilizer kits and factory-available luggage racks expanded the Magna’s versatility for touring.

Technical Parameters

Riding Experience and Legacy

Riding a Honda Magna feels like straddling a GT cruiser with a sportbike’s DNA. The V4 engine delivers smooth, instant throttle response and a satisfying exhaust bark from either the four-into-four or the later four-into-two layouts. The steel frame imbues solidity under braking, while the long wheelbase and controlled steering geometry inspire confidence on sweeping highways. Over the years, the Magna’s blend of reliable performance, unique V4 soundtrack, and cruiser comfort has cemented its status as a collectible classic in the power-cruiser segment.

Conclusion

The Honda Magna stands as a milestone in motorcycle history, proving that a cruiser can harness the heart of a high-performance V4 without sacrificing comfort or reliability. Its engineering innovations—oil-in-frame construction, anti-dive forks, and a compact, torque-rich engine—set the stage for future power cruisers. Decades later, the Magna’s timeless styling and engaging ride continue to captivate enthusiasts seeking a machine that merges the best of both sport and cruiser worlds.
