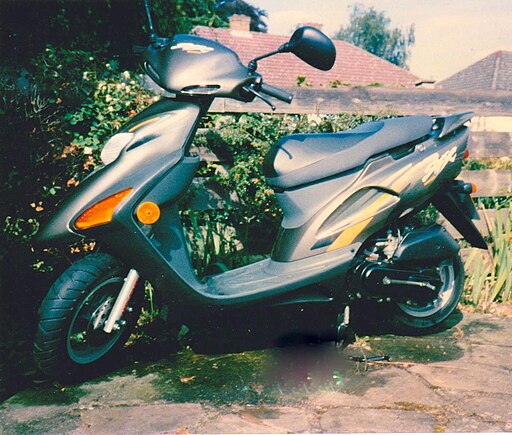

Honda SFX50
The Honda SFX50 is a compact scooter that encapsulates Honda’s traditional emphasis on mechanical simplicity and reliability. Designed primarily for urban transportation, this model is appreciated by riders who value low running costs, ease of maintenance, and a lightweight frame. Although modest in size, the SFX50 is equipped with a range of well-thought-out technical solutions that ensure an efficient and smooth riding experience. In this article, we explore the design philosophy behind the SFX50 and break down its core technical parameters.
History and Overview
Origins and Market Positioning
The Honda SFX50 emerged at a time when many riders were looking for an affordable, efficient solution for city commuting. With its 50‑cc engine and compact design, it fulfilled a niche that combined ease of use with low running expenses. The SFX50 quickly became popular, especially among younger riders and urban commuters, by offering a blend of simplicity and functionality. Its design was influenced by the evolution of two-stroke technology, providing an engaging ride while also adhering to regulations such as a maximum speed limit in some markets.
Design Philosophy
Honda’s engineering approach for the SFX50 was grounded in reliability and low maintenance. By utilizing a two-stroke engine system and a straightforward transmission layout, the scooter minimizes mechanical complexity—making it appealing for riders who value ease of repair and customization. At its heart, the SFX50 represents a balance between lightweight agility and durable construction, ensuring that it remains both fun to ride and budget-friendly in terms of upkeep.
Technical Specifications
Engine and Powertrain
At the core of the Honda SFX50 lies a compact and efficient engine that perfectly suits its purpose as an urban scooter.
- Engine Type: The SFX50 is powered by a single-cylinder, two-stroke engine. This design emphasizes simplicity and responsiveness while keeping overall maintenance straightforward.
- Displacement: With a displacement of approximately 49 cc, the engine is optimized for quick acceleration in start–stop urban environments.
- Bore and Stroke: The engine’s bore and stroke are approximately 39 mm and 41.4 mm, respectively. These dimensions ensure that the engine develops a balanced power output suitable for city riding.
- Maximum Torque: The engine produces a maximum torque of about 4.6 Nm at 5,500 rpm. This level of torque is sufficient for quick, responsive performance in the stop-start conditions typical of urban commuting.
- Maximum Power: The SFX50 is capable of generating approximately 2.8 kW (or around 3.8 horsepower) at 6,000 rpm. This output makes it an ideal choice for riders who do not require high-speed performance but want a lively and engaging ride.
- Cooling System: The engine is cooled by ambient air. This air-cooling method is both efficient and simple, reducing the need for additional components that could raise maintenance costs.
Transmission and Drivetrain
The Honda SFX50 is designed with user-friendliness in mind when it comes to its power delivery.
- Transmission: Featuring an automatic transmission, the SFX50 eliminates the need for manual gear shifting. This practical setup ensures that even new riders can enjoy a smooth and easy-to-handle ride.
- Drivetrain: A robust chain-drive links the engine’s power to the rear wheel. This conventional method of power transfer is favored in many lightweight scooters for its reliability and ease of maintenance.
Suspension, Brakes, and Tires
An efficient powertrain and engine are complemented by well-tuned suspension and braking systems that ensure safety and comfort in daily use.
- Front Braking: The scooter is equipped with a single-disc brake at the front—featuring a disc of about 160 mm in diameter. This provides solid, responsive braking performance in various riding conditions.
- Rear Braking: At the rear, a drum brake with a diameter of around 110 mm is used. Though more conventional, this braking system is reliable and perfectly adequate for the moderate speeds at which the SFX50 operates.
- Tires: Both the front and rear tires are sized at 100/80-10. These dimensions provide good grip on urban surfaces and ensure stability on smaller roads. The tire choice is in line with the scooter’s emphasis on agility and low weight.
Chassis, Dimensions, and Ergonomics
The overall design of the Honda SFX50 is engineered to provide both comfort and stability, even in the hectic environment of city traffic.
- Frame: A durable steel frame forms the core of the scooter’s construction. This offers a solid basis for safety and handling while helping to keep production costs—and therefore the selling price—low.
- Wheelbase: The wheelbase is approximately 1,215 mm. A shorter wheelbase contributes to the nimble maneuverability that is essential for tight urban corners and congested streets.
- Seat Height: The seat height is around 755 mm, making it accessible to a wide variety of riders and contributing to an easy-to-reach control layout.
- Dry Weight: With a ready-to-ride (dry) weight of approximately 78 kg, the Honda SFX50 is exceptionally light. This low weight not only enhances acceleration from a standing start but also makes the vehicle easier to handle during parking or when maneuvering in crowded urban environments.
- Fuel Tank Capacity: The fuel tank holds approximately 6 liters, which, together with the engine’s efficient fuel consumption, results in impressive mileage characteristics—a beneficial feature for daily commuters.
Maintenance and Operational Aspects
Servicing and Durability
One of the standout qualities of the Honda SFX50 is its low maintenance demand. Its design philosophy is centered on minimizing mechanical complexity and therefore reducing the frequency or cost of repairs.
- Ease of Maintenance: The minimalist two-stroke engine requires fewer components than more complex four-stroke designs, making routine servicing straightforward. The automatic transmission further eliminates complications that might otherwise arise from manual gear systems.
- Accessibility of Parts: Owing to its simple construction and wide popularity, genuine replacement parts for the SFX50 are readily available. This supports long-term ownership without incurring high maintenance expenses.
- Durability: Constructed with a robust steel chassis and subjected to Honda’s rigorous quality control, the SFX50 is designed to withstand the bumps and vibrations of everyday city riding.
Fuel Economy and Environmental Impact
Given its small engine displacement and efficient two-stroke operation, the Honda SFX50 is exceptional in terms of fuel economy.
- Efficient Fuel Consumption: Its engine is fine-tuned for low fuel consumption, meaning drivers can expect minimal refueling intervals. This is particularly advantageous in urban areas where stop-and-go traffic is common.
- Environmental Considerations: While two-stroke engines have historically faced challenges with emissions, Honda’s modern tuning—including the integration of advanced fuel injection systems in later updates—helps mitigate environmental impact, making the SFX50 a relatively green choice among micro-scooters.
Conclusion
The Honda SFX50 remains a testament to Honda’s ability to craft simple yet effective machines ideal for urban scenarios. With a compact 49‑cc, two-stroke engine that delivers 2.8 kW of power and 4.6 Nm of torque, an automatic transmission for user-friendly operation, and a lightweight steel frame designed for agility and easy handling, the SFX50 expertly meets the demands of modern urban mobility.
Its reliable braking system, comfortable seating geometry, and excellent fuel economy further enhance its standing as a practical and economical solution for everyday travel. Whether you’re a new rider seeking an accessible machine or an experienced commuter in need of a low-maintenance vehicle, the Honda SFX50 offers a well-rounded package that combines functionality, durability, and a touch of Honda’s trademark engineering excellence.
