Mooney M20: A Comprehensive Overview

The Mooney M20 is a family of piston-powered, four-seat, low-wing general aviation aircraft designed and manufactured by Mooney International Corporation. Introduced in 1955, the Mooney M20 series has become widely recognized for its efficiency, speed, and innovative design. Over the years, the aircraft has undergone multiple modifications, with various models featuring advancements in aerodynamics, avionics, and powerplant performance.

This article provides a detailed overview of the Mooney M20, including its history, technical specifications, performance characteristics, and variants.

History and Development

Early Development (1950s-1960s)

The M20 was first introduced in 1955 as an evolution of Mooney’s earlier M18 Mite. Designed by Al Mooney, the M20 was built to offer superior aerodynamics and efficiency. The aircraft was distinguished by its signature backward-sloped vertical stabilizer, a feature that remains iconic in Mooney designs.

Initial models were powered by a 150-horsepower Lycoming O-320 engine and had wooden wings and tail sections. However, after structural issues emerged, Mooney transitioned to all-metal construction in the late 1950s.

Expansion and Innovations (1970s-1980s)

During the 1970s and 1980s, Mooney introduced several variants of the M20, incorporating more powerful engines, improved avionics, and turbocharging. Models such as the M20J (“201”) and M20K (“231”) gained popularity due to their remarkable speed and fuel efficiency, often outperforming competing aircraft in their class.

Modern Advancements (1990s-Present)

The 1990s and early 2000s saw the introduction of glass cockpits, aerodynamic refinements, and enhanced engine performance. The M20R Ovation and M20V Acclaim Ultra models are among the fastest single-engine piston aircraft, achieving cruise speeds exceeding 240 knots.

Technical Specifications

General Characteristics

• Crew: 1 (pilot)
• Passenger Capacity: 3 (total seating for 4)
• Length: Varies by model (typically 24-27 feet)
• Wingspan: Approximately 36-37 feet
• Height: Around 8 feet
• Wing Area: Approximately 175-180 square feet
• Empty Weight: Varies from 1,700 to 2,500 lbs
• Maximum Takeoff Weight (MTOW): 2,900 to 3,368 lbs, depending on model
• Fuel Capacity: Typically 64 to 102 gallons, depending on the variant

Powerplant Options

Different M20 variants feature a range of engines:

Naturally Aspirated Engines

• M20J (201): Lycoming IO-360-A3B6D, 200 HP
• M20R Ovation: Continental IO-550-G, 280 HP

Turbocharged Engines

• M20K (231): Continental TSIO-360-GB, 210 HP
• M20V Acclaim Ultra: Continental TSIO-550-G, 310 HP

Performance Characteristics

Speed and Range

• Max Cruise Speed: 155 to 242 knots (depending on model)
• Range: 850 to 1,600 nautical miles
• Rate of Climb: 800 to 1,500 feet per minute
• Service Ceiling: 18,000 to 25,000 feet

Fuel Efficiency

One of Mooney’s standout features is its exceptional fuel efficiency. Models like the M20J (201) are known to achieve over 20 nautical miles per gallon, making them one of the most efficient piston aircraft in their class.

Avionics and Instrumentation

Modern Mooney M20 models are equipped with advanced avionics suites, including:

• Garmin G1000 NXi glass cockpit (M20V Acclaim Ultra)
• Garmin GFC 700 autopilot
• WAAS GPS and ADS-B compliance
• Integrated engine monitoring systems

Variants and Model Evolution

M20A to M20E (Early Models)

• The M20A (1958) was the first metal-wing Mooney.
• The M20B and M20C introduced refinements in aerodynamics and fuel capacity.
• The M20E (“Super 21”) was the first high-performance variant with a 200 HP engine.

M20J (201) and M20K (231)

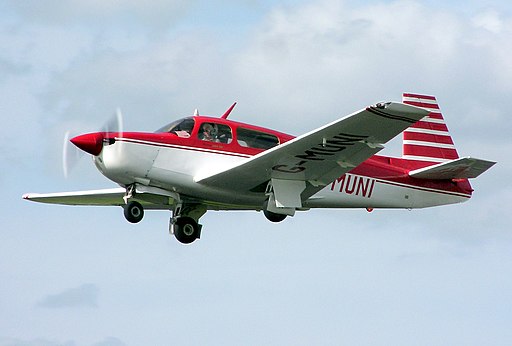

• M20J (201): One of the most successful models, achieving a cruise speed of 201 MPH with a 200 HP engine.
• M20K (231): Introduced turbocharging, enabling higher altitude performance.

M20M, M20R, and M20V (Modern Models)

• M20M Bravo: A turbocharged variant with a 270 HP engine.
• M20R Ovation: Featured a 280 HP IO-550 engine, offering greater speed and range.
• M20V Acclaim Ultra: The fastest Mooney M20 model, with a top speed of 242 knots.

Strengths and Limitations

Strengths

✔ Speed: Among the fastest single-engine piston aircraft.
✔ Fuel Efficiency: Low fuel burn for its speed class.
✔ Durability: Metal construction provides excellent structural integrity.
✔ Range: Long-distance capabilities make it a solid choice for cross-country flying.

Limitations

✖ High Landing Speeds: Requires longer runways than some competitors.
✖ Expensive Maintenance: Retractable gear and complex systems increase maintenance costs.
✖ Cabin Space: Smaller interior compared to some competing aircraft.

Conclusion

The Mooney M20 series has earned a reputation for its combination of speed, efficiency, and reliability. Over 60 years of production, Mooney has continuously refined the M20, making it one of the most iconic and desirable single-engine aircraft in general aviation.

For pilots seeking a fast, fuel-efficient, and high-performing aircraft, the Mooney M20 remains an outstanding choice.
