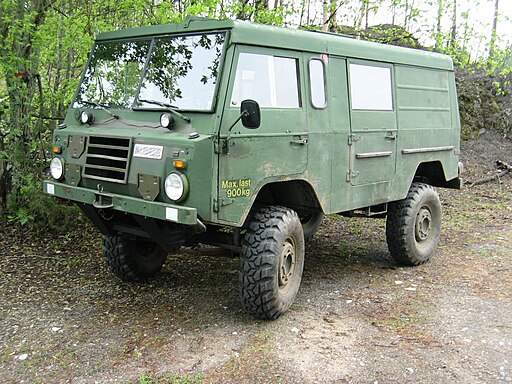

Volvo C303

The Volvo C303 is a legendary off-road vehicle renowned for its ruggedness and versatility. Introduced in the early 1970s as part of the Volvo Cross Country (C3) series, the C303 was primarily developed for military use, catering to the demanding requirements of the Swedish Armed Forces. Its robust construction and exceptional off-road capabilities made it an ideal choice for various military applications, including troop transport, reconnaissance, and logistical support. The C303 quickly gained a reputation for being able to traverse the most challenging terrains, from dense forests to snowy landscapes, showcasing Volvo’s commitment to engineering excellence.

One of the key attributes of the Volvo C303 is its impressive off-road performance, enabled by a combination of advanced features. The vehicle is equipped with a 3.0-liter inline six-cylinder engine that delivers reliable power and torque, essential for navigating difficult terrains. Its full-time four-wheel-drive system, along with lockable differentials and high ground clearance, ensures maximum traction and stability on uneven and slippery surfaces. Additionally, the C303’s portal axles provide extra ground clearance without increasing the height of the vehicle, allowing it to tackle obstacles that would typically hinder other vehicles in its class.

Beyond its mechanical prowess, the Volvo C303 is designed with versatility in mind. The vehicle comes in various configurations, including hard-top, soft-top, and ambulance versions, making it adaptable to a wide range of missions and tasks. The spacious interior is designed to accommodate several passengers or significant amounts of cargo, depending on the configuration. This adaptability extends its utility beyond military applications to include roles in search and rescue operations, forestry, and even as a popular choice among off-road enthusiasts. The C303’s durability and ease of maintenance further enhance its appeal, ensuring it remains operational in the harshest conditions with minimal downtime.

In summary, the Volvo C303 exemplifies the fusion of rugged engineering and practical design. Its development for the Swedish military ensured it was built to withstand the most demanding environments, and its adoption in various civilian roles speaks to its versatility and reliability. With its powerful engine, advanced off-road capabilities, and flexible configurations, the C303 has earned its place as a respected and enduring vehicle in the annals of off-road and military transport history. Whether used in military, rescue, or recreational contexts, the Volvo C303 remains a benchmark for robust, all-terrain vehicles.

Here are the detailed parameters of the Volvo C303:

General Specifications:

• Manufacturer: Volvo
• Model: C303 (part of the Volvo Cross Country C3 series)
• Type: Military and off-road vehicle
• Introduction Year: Early 1970s

Engine:

• Type: Volvo B30
• Displacement: 3.0 liters
• Configuration: Inline 6-cylinder
• Power Output: Approximately 125 horsepower (93 kW)
• Torque: Approximately 210 Nm

Transmission:

• Type: Manual
• Gears: 4-speed manual gearbox with a 2-speed transfer case

Drivetrain:

• Drive Configuration: Full-time four-wheel drive (4×4)
• Differentials: Lockable front and rear differentials
• Axles: Portal axles for increased ground clearance

Dimensions:

• Length: Approximately 4,380 mm
• Width: Approximately 1,850 mm
• Height: Approximately 2,300 mm
• Wheelbase: 2,300 mm
• Ground Clearance: Approximately 400 mm

Performance:

• Maximum Speed: Approximately 100 km/h
• Gradeability: Capable of climbing steep inclines, typically around 45 degrees
• Turning Radius: Approximately 6.5 meters

Capacity:

• Seating Capacity: Driver plus up to 8 passengers (depending on configuration)
• Cargo Capacity: Varies with configuration, generally designed to carry substantial cargo loads
• Fuel Tank Capacity: Approximately 80 liters

Suspension:

• Front Suspension: Coil springs with hydraulic shock absorbers
• Rear Suspension: Coil springs with hydraulic shock absorbers

Brakes:

• Type: Hydraulic drum brakes on all wheels

Electrical System:

• Voltage: 24V electrical system

Body Configurations:

• Types: Hard

-top, soft-top, and ambulance versions

• Features: Modular design for various military and civilian applications

Special Features:

• Durability: Built with a robust steel body and reinforced chassis for heavy-duty use
• Maintenance: Designed for ease of maintenance with accessible mechanical components
• Versatility: Adaptable for a range of uses from military to search and rescue operations

Applications:

• Military: Used for troop transport, reconnaissance, and logistical support
• Civilian: Popular among off-road enthusiasts, search and rescue operations, and forestry services
• Specialized Uses: Capable of being outfitted for medical transport (ambulance version) and other specialized tasks

Environmental and Efficiency Features:

• Fuel Type: Petrol
• Fuel Efficiency: Optimized for durability and reliability over fuel economy
• Emissions: Built to meet the standards of the era of production

The Volvo C303’s combination of rugged engineering, powerful drivetrain, and versatile configurations makes it a standout vehicle in both military and civilian sectors. Its ability to handle extreme off-road conditions while providing reliability and ease of maintenance has cemented its reputation as a legendary all-terrain vehicle.
