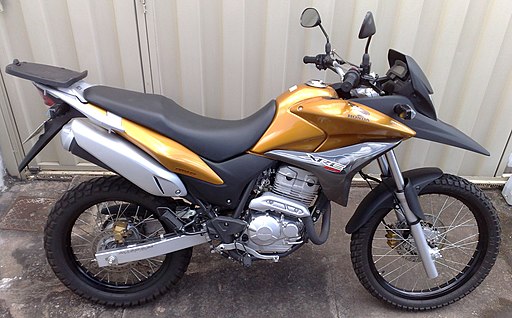

Honda XRE300
The Honda XRE300 stands out as a versatile dual-sport motorcycle built to tackle both city streets and rugged trails. With a focus on reliability, ease of maintenance, and confident handling, it has become a favorite among riders seeking a do-it-all machine. In this article, we delve into its design, powertrain, chassis details, and key technical specifications.
Design and Ergonomics
The XRE300’s styling combines Honda’s practical sensibilities with trail-inspired flair. Its tall windscreen, high front fender, and slim tank profile convey readiness for off-road challenges, while offering comfortable day-to-day usability.
Frame and Chassis
- Type: Steel tubular perimeter frame
- Geometry: Designed for stability at speed and nimble cornering on unpaved terrain
- Swingarm: Reinforced steel box-section swingarm to withstand heavy loads
Ergonomics and Rider Interface
- Seat Height: 860 mm – medium-tall position balances off-road clearance with urban accessibility
- Handlebars: Wide, aluminum tubular bars for leverage on loose surfaces
- Footpegs: Serrated steel pegs positioned for aggressive standing posture
Engine and Performance
At the heart of the XRE300 lies an air-cooled single-cylinder engine known for durability and broad power delivery. It provides enough grunt for highway cruising without sacrificing low-speed torque essential for trail riding.
Engine Specifications
| Attribute | Specification |
|---|---|
| Configuration | 4-valve SOHC single-cylinder |
| Displacement | 291 cc |
| Bore × Stroke | 78 mm × 61.2 mm |
| Compression Ratio | 9.0 : 1 |
| Lubrication | Wet sump |
Power and Torque
- Maximum Power: 26 hp at 7,500 rpm
- Peak Torque: 2.6 kg·m at 6,000 rpm
- Broad mid-range torque curve ensures smooth pull from low revs, minimizing frequent downshifts on mixed terrain.
Fuel System and Efficiency
- Fuel Delivery: 32 mm constant-velocity carburetor
- Fuel Efficiency: Approximately 30 km/L under combined city and highway riding
- Emissions: Meets Euro 3 standards with catalytic converter and secondary air injection
Transmission and Drivetrain
The XRE300’s transmission is tuned for versatility, offering a wide gear spread that aids both low-speed maneuvering and relaxed highway cruising.
Gearbox
- Gears: 5-speed constant mesh
- Shift Mechanism: Ratchet-type quick-shift lever designed for precise engagement
- Primary Reduction: 3.045 : 1
Final Drive
- Final Ratio: 3.083 : 1
- Chain Type: 520 O-ring chain with adjustable tensioners for longevity
- Sprockets: 14-tooth front, 45-tooth rear (standard), swap options for customized gearing
Suspension and Brakes
Confidence in every corner and on every bump is delivered through Honda’s tuned suspension components and reliable braking setup.
Front Suspension
- Type: Telescopic fork
- Travel: 180 mm
- Diameter: 37 mm stanchions
Rear Suspension
- Type: Pro-Link® single shock
- Travel: 165 mm
- Preload Adjustment: 5-position for varying loads and riding styles
Brakes and Wheels
| Component | Specification |
|---|---|
| Front Brake | 256 mm single hydraulic disc |
| Rear Brake | 220 mm single hydraulic disc |
| Front Wheel | 21-inch aluminum rim |
| Rear Wheel | 18-inch aluminum rim |
| Tires | 2.75×21 front, 4.10×18 rear |
Electrical System and Instrumentation
Modern conveniences and a reliable electrical setup ensure the XRE300 remains functional and user-friendly both on and off pavement.
Lighting
- Headlight: Halogen 35W/35W multi-reflector
- Taillight: LED assembly for enhanced visibility
- Turn Signals: Amber lenses with integrated reflectors
Instrument Cluster
- Type: Analog speedometer with digital LCD inset
- Features: Odometer, trip meter, clock, fuel gauge, gear position indicator
- Backlighting: Amber LED for low-light readability
Battery and Electrical Components
- Battery: 12 V, 4 Ah maintenance-free
- Alternator Output: 180 W at 5,000 rpm
- Wiring Harness: Simplified for ease of troubleshooting and accessory installation
Dimensions and Weight
Balanced proportions and manageable curb weight contribute to the XRE300’s agile handling characteristics.
Measurements
- Overall Length: 2,175 mm
- Overall Width: 840 mm
- Overall Height: 1,225 mm
- Wheelbase: 1,425 mm
- Ground Clearance: 245 mm
Weight
- Curb Weight: 155 kg (with all fluids and 90% fuel)
- Payload Capacity: Approximately 170 kg with rider and luggage
Fuel Capacity and Range
A 13.5-liter tank strikes a balance between weight and extended range.
- Fuel Capacity: 13.5 L total, 3.2 L reserve
- Theoretical Range: Up to 400 km under mixed riding conditions
- Reserve Light: Located in instrument cluster, alerts rider at approximately 3 L remaining
Tires and Wheels Specifications
The wheel and tire package is optimized for mixed-surface performance.
- Rims: Front 21×1.60 in, Rear 18×2.15 in
- Recommended Tires:
- Front: 80/90-21 dual-sport
- Rear: 120/80-18 dual-sport
- Tubeless Conversion: Optional with reinforced rim beads and valve stems
Optional Accessories and Customization
Honda offers a range of factory and aftermarket accessories to tailor the XRE300 to individual needs.
- Luggage: Hard panniers, top case, soft saddlebag kits
- Protection: Engine guards, skid plate, handguards
- Comfort: Gel seat pad, handlebar risers, windscreen extension
- Performance: High-flow air filter, slip-on exhaust, adjustable suspension linkage
Conclusion
The Honda XRE300 remains a compelling choice for riders seeking a bike that bridges city commuting and trail exploration. Its robust air-cooled engine, balanced chassis, and comprehensive specification sheet underscore Honda’s commitment to reliability and rider confidence. Whether tackling back-country trails or weaving through urban traffic, the XRE300 delivers a versatile platform that adapts to a wide spectrum of riding scenarios.
