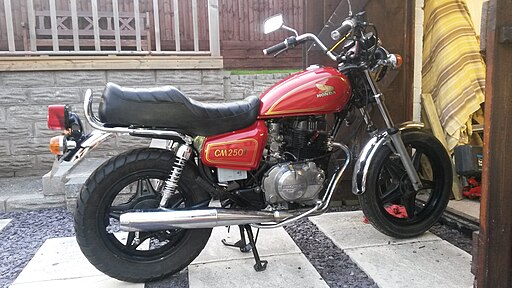

Honda CM250C: The Compact Cruiser with Classic Roots
The Honda CM250C Custom blends old-school cruiser style with user-friendly simplicity. Introduced in the early 1980s, it set out to deliver laid-back riding manners without the bulk or complexity of larger V-twin cruisers. Light, nimble and impeccably reliable, the CM250C remains an appealing choice for new riders, budget-minded commuters and anyone craving vintage cruiser flair with minimal upkeep.
Historical Roots and Design Vision
Emergence of the CM250C Custom
As 250 cc motorcycles gained popularity for urban commuting, Honda sought to broaden the segment beyond spindly streetbikes. The CM250C arrived wearing a bobbed rear fender, fat teardrop tank and swept exhausts—all wrapped in tasteful chrome accents. Underneath the cruiser skin lay the same dependable parallel-twin that powered Honda’s CB250 series, re-tuned for easy torque and relaxed highway cruising.
Styling Language and Rider Intent
Chrome-plated fork covers, headlamp nacelle and side-cover inlays evoke larger touring models at a more accessible price point. A low, wide saddle positions the rider close to the pavement, while mid-mounted pegs strike a balance between comfort and ground clearance. The result feels custom-built yet remains approachable for riders of all experience levels.
Engine and Performance
Powerplant Overview
At its core the CM250C is powered by a 234 cc air-cooled parallel-twin. A single overhead cam actuates two valves per cylinder, and twin Keihin carburetors deliver smooth fueling. Honda engineers optimized the powerband for low-end tractability, making U-turns, traffic weaving and leisurely backroad cruises effortless.
Technical Specifications
| Specification | Details |
|---|---|
| Engine Type | Air-cooled SOHC parallel-twin, 2-valve |
| Displacement | 234 cc |
| Bore × Stroke | 53 mm × 56.6 mm |
| Compression Ratio | 9.2 : 1 |
| Carburetion | Twin 20 mm Keihin CV |
| Ignition | Transistorized CDI |
| Starter | Electric with kick-start backup |
| Transmission | 5-speed manual constant mesh |
| Final Drive | Sealed chain |
| Maximum Power | 18 hp @ 9 000 rpm |
| Maximum Torque | 18 Nm @ 7 000 rpm |
On-Road Character
Below 5 000 rpm the twin delivers a broad, predictable pull. Throttle response remains gentle at low speeds, then builds into a smooth surge as revs climb. Despite modest peak output, the CM250C easily maintains 80–90 km/h cruising speeds, and fuel economy hovers around 3.5 L/100 km for a real-world range exceeding 300 km on its 12 L tank.
Chassis, Suspension and Handling
Frame Architecture
A tubular steel double-cradle frame provides a sturdy yet lightweight backbone. With a 1 310 mm wheelbase and 28° rake, the chassis strikes a balance between straight-line stability and nimble turn-in.
Front Suspension
Telescopic forks deliver 120 mm of wheel travel. Though non-adjustable, the spring and damping rates soak up urban potholes and highway ripples while preserving enough feedback to maintain rider confidence.
Rear Suspension
Dual shock absorbers with adjustable preload offer 110 mm of travel. Simple adjusters let the rider dial in sag for solo riding, two-up trips or luggage loads, keeping the rear wheel well planted.
Wheels, Tires and Brakes
Spoked 18-inch wheels wear 3.00-18 front and 3.50-18 rear tires. Drum brakes front (180 mm) and rear (160 mm) deliver gentle, predictable stopping power and straightforward maintenance.
Electrical System and Instrumentation
Charging and Lighting
A compact 12 V, 85 W alternator powers the fuel-injection system’s CDI ignition and all lighting circuits. The headlamp sits within a chrome nacelle, flanked by simple turn-signal pods and a taillight assembly that blends seamlessly into the bobbed rear fender.
Cockpit Layout
Twin analog gauges provide speedometer, odometer, trip meter and high-beam indicator. Handlebar-mounted switches control lights, horn and indicators, while a single key unlocks the ignition and steering lock for added convenience.
Dimensions, Weight and Ergonomics
| Dimension | Measurement |
|---|---|
| Overall Length | 2 000 mm |
| Wheelbase | 1 310 mm |
| Seat Height | 735 mm |
| Ground Clearance | 150 mm |
| Wet Weight | 130 kg |
| Fuel Capacity | 12 L |
The low, wide saddle positions the rider in an easy-going posture. Mid-mounted pegs keep legs slightly bent for a relaxed ride, while the narrow tank allows confident footing at stops. Despite its cruiser lineage, the CM250C’s compact dimensions reward quick direction changes in city traffic.
Fuel Economy and Range
On a mixed urban/highway loop the CM250C returns roughly 3.5 L/100 km, translating into a real-world range of 320 km between refills. Steady highway cruising at 80 km/h can improve economy to 3 L/100 km, making longer tours surprisingly viable for a 250 cc machine.
Maintenance and Reliability
Routine service is easily handled at home. Oil and filter changes every 3 000 km, valve clearance checks every 6 000 km and periodic carburetor synchronization form the core regimen. The air-cooled engine eliminates coolant checks, while sealed chain and drum brakes minimize adjustment chores.
Common Wear Points
Inspect fork seals annually, adjust spokes and torque front axle pinch bolts. Drum-brake shoes may require periodic replacement depending on riding style. The CDI ignition system remains reliable, but owners often upgrade to a modern regulator/rectifier for rock-solid charging under stop-and-go conditions.
Customization and Aftermarket Support
Despite modest sales, a dedicated aftermarket supplies tasteful upgrades: • Performance slip-on mufflers for weight savings and richer tone • LED headlamp and turn-signal conversion kits for modern illumination • Café-style solo seats and mini-fairings for a custom silhouette • Front disc-brake conversion kits for sharper stopping power • High-flow air filters with matched jet kits to refine throttle response
Rider Community and Legacy
The CM250C enjoys a small but passionate following. Vintage cruiser meet-ups and online forums share restoration tips, wiring hacks and paint-code swatches. Its combination of classic styling, easy maintenance and approachable performance continues to draw new converts to the 250 cc cruiser world.
Conclusion and Next Steps
The Honda CM250C Custom remains a charming gateway into cruiser riding. Its blend of dependable twin-cylinder torque, light handling and classic aesthetics makes every ride effortless and engaging. Those seeking deeper exploration might compare the CM250C to modern small-bore cruisers, investigate suspension upgrade paths or embark on a resto-mod build to fuse vintage appeal with contemporary components. Whichever road you choose, the CM250C offers a supremely balanced canvas for creativity, technical learning and pure riding enjoyment.
