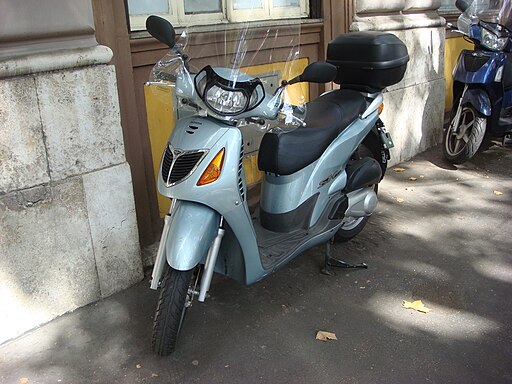

Honda SH150i
The Honda SH150i is a premium maxi-scooter that blends urban agility with highway poise. Since its debut, it has stood out for its mix of sporty design, refined engine character, and practical features—making it a favorite among city commuters and weekend explorers alike. In this article, we’ll delve into every technical parameter that gives the SH150i its distinctive edge: from the engine and chassis to suspension, brakes, dimensions, and maintenance considerations.
Engine and Performance
Engine Specifications
- Configuration: 153 cc single-cylinder, liquid-cooled, 4-stroke, SOHC
- Bore × Stroke: 58.0 mm × 57.8 mm
- Compression Ratio: 11.6 : 1
- Fuel System: PGM-FI electronic fuel injection
- Cooling: Liquid with compact radiator
Power and Torque
- Maximum Power: 11.4 kW (15.4 hp) @ 8 500 rpm
- Maximum Torque: 14.5 Nm @ 6 500 rpm
- Redline: 9 000 rpm
This advanced single-cylinder engine combines a high compression ratio with precise fuel injection, delivering smooth low-end torque for city traffic and ample top-end power for confident overtakes on open roads.
Transmission and Final Drive
CVT Automatic Transmission
The SH150i uses Honda’s V-Matic continuously variable transmission (CVT), offering:
- Seamless acceleration without gear shifts
- Optimized belt and pulley ratios for both fuel efficiency and spirited performance
- Built-in torque-converter effect for smooth startup
Secondary Drive
- Chain/CVT final drive: A steel-reinforced drive belt transfers power to the rear wheel, requiring minimal adjustment and providing quiet operation.
Chassis and Suspension
Underbone Frame
- Type: High-tensile steel underbone with reinforced side spars
- Wheelbase: 1 345 mm
- Rake / Trail: 27° / 94 mm
This sturdy yet compact frame balances nimble turn-in with stable tracking at higher speeds.
Front Suspension
- Telescopic forks with 100 mm travel
- Optimized damping for urban potholes and highway comfort
Rear Suspension
- Twin hydraulic shock absorbers
- Five-step spring preload adjustment
- 95 mm travel
The rear shocks can be tuned to rider weight or passenger loads, ensuring consistent ride quality.
Brakes and Wheels
Braking System
- Front: 256 mm hydraulic disc with twin-piston caliper and standard ABS
- Rear: 240 mm hydraulic disc with single-piston caliper
ABS provides reliable stopping power on both dry and wet surfaces, reducing wheel lock-up in sudden braking scenarios.
Wheels and Tires
- Front Wheel: 16″ cast aluminum with 110/70-16 tire
- Rear Wheel: 14″ cast aluminum with 130/70-14 tire
Larger-dia front wheel aids stability and obstacle rollover, while the rear tire offers a broad contact patch for traction under acceleration.
Dimensions and Capacities
Key Dimensions
- Overall Length: 1 920 mm
- Overall Width: 740 mm
- Overall Height: 1 125 mm
- Seat Height: 785 mm
- Ground Clearance: 137 mm
Weight and Fuel Capacity
- Curb Weight: 135 kg (fully fueled, ready to ride)
- Fuel Tank: 7.5 L (reserve included)
- Under-seat Storage: 18 L helmet compartment + glove box
The relatively low seat height and compact dimensions suit a wide range of rider heights and make U-turns or parking maneuvers effortless.
Fuel Economy and Emissions
- Claimed Fuel Consumption: 2.2–2.5 L/100 km under mixed riding
- Real-World Range: 300–340 km per tank
Honda’s PGM-FI system and lean combustion mapping deliver impressive economy, while meeting strict Euro 4/5 emission regulations in global markets.
Instrumentation and Features
Dashboard
- Fully digital LCD with: • Speedometer and odometer • Dual trip meters • Fuel gauge and clock • Ambient temperature display
Lighting and Convenience
- LED headlight and taillight for bright, efficient illumination
- Integrated hazard light switch
- 12 V DC outlet under seat for charging gadgets
These modern touches add both safety and everyday practicality.
Ergonomics and Riding Experience
- Upright seating with relaxed foot-floor position
- Wide, tapered handlebar for confident steering
- Well-contoured seat for rider and passenger comfort
The SH150i’s ergonomics minimize fatigue during rush-hour commutes and support an engaging posture when carving twisty canyon roads.
Maintenance and Service
Oil and Filter
- Replacement Interval: Every 5 000 km or 12 months
- Oil Type: 10W-30 semi-synthetic recommended
Spark Plug
- Replacement Interval: Every 10 000 km
- Gap: 0.8 mm
Air Filter
- Cleaning/Replacement: Every 12 000 km or sooner in dusty conditions
Brake Fluid
- Replacement: Every 24 000 km or 2 years
Routine maintenance is straightforward thanks to easily accessible service points, and Honda’s global dealer network ensures genuine parts are never far away.
Conclusion
The Honda SH150i masterfully blends a punchy 153 cc SOHC engine, smooth CVT, and a solid underbone frame into a scooter that excels both in city traffic and on open roads. Its comprehensive feature set—from ABS-equipped brakes to LED lighting and full digital display—underscores Honda’s commitment to safety and convenience. With its fuel-sipping habits, rider-friendly ergonomics, and low maintenance burden, the SH150i remains a standout choice for anyone seeking a refined, versatile, and fun-to-ride maxi-scooter.
