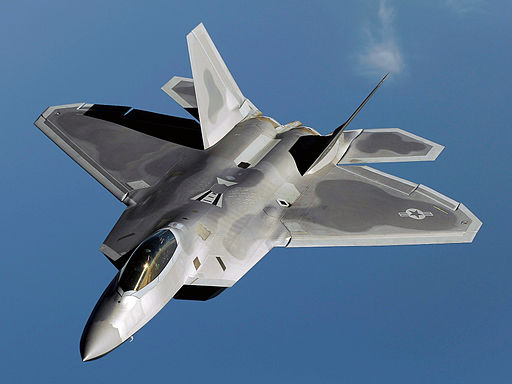

Lockheed Martin F-22 Raptor

Lockheed Martin F-22 Raptor

The Lockheed Martin F-22 Raptor stands as one of the most advanced and formidable fighter aircraft in the world, renowned for its unmatched combination of stealth, speed, agility, and situational awareness. Developed by Lockheed Martin, the F-22 was designed to establish air superiority in contested environments, employing cutting-edge technologies to outmatch potential adversaries. Its sleek aerodynamic design, advanced radar-absorbent materials, and internal weapons bays minimize its radar cross-section, granting it a high degree of stealth and survivability.

At the heart of the F-22’s capabilities is its integrated avionics suite, which combines sensor fusion, data processing, and stealth technologies to provide unparalleled situational awareness and lethality. Equipped with the AN/APG-77 radar and AN/ALR-94 electronic warfare suite, the F-22 can detect and track enemy aircraft from beyond visual range while remaining undetected itself. Furthermore, its ability to communicate and share data with other aircraft and assets in real-time enhances its effectiveness in joint and coalition operations, enabling seamless integration into complex air combat scenarios.

In addition to its air-to-air prowess, the F-22 boasts a potent air-to-ground capability, employing precision-guided munitions and standoff weapons to strike high-value targets with precision and minimal risk to aircrew. Its internal weapons bays allow it to carry a variety of air-to-air and air-to-ground missiles, including the AIM-120 Advanced Medium-Range Air-to-Air Missile (AMRAAM) and the Joint Direct Attack Munition (JDAM). As a result, the F-22 provides unmatched versatility and lethality across a wide range of mission profiles, from air superiority and counter-air operations to precision strike and close air support.

Armament Lockheed Martin F-22 Raptor

The armament of the Lockheed Martin F-22 Raptor, a fifth-generation stealth fighter aircraft, typically includes a wide array of air-to-air and air-to-ground weapons. While specific configurations may vary depending on mission requirements and operational theaters, the F-22 Raptor is typically equipped with:

1. Air-to-Air Missiles: The F-22 is often armed with a combination of beyond-visual-range (BVR) and within-visual-range (WVR) air-to-air missiles to engage enemy aircraft. These missiles include the AIM-120 Advanced Medium-Range Air-to-Air Missile (AMRAAM) for BVR engagements and the AIM-9 Sidewinder for WVR engagements.
2. Air-to-Ground Munitions: In its air-to-ground role, the F-22 can carry a variety of precision-guided munitions (PGMs) and standoff weapons to strike ground targets with precision. These include Joint Direct Attack Munitions (JDAMs), Small Diameter Bombs (SDBs), and Joint Standoff Weapons (JSOWs), among others.
3. Internal Gun: The F-22 is equipped with an internally mounted M61A2 20mm Gatling gun for close-range engagements. The gun is concealed within the aircraft’s fuselage to maintain its stealth profile when not in use.
4. Electronic Warfare (EW) and Countermeasures: The F-22 is equipped with an advanced electronic warfare suite, including radar warning receivers (RWRs), electronic support measures (ESMs), and chaff and flare dispensers to detect and counter enemy threats.
5. Additional Weapons: The F-22 can also be equipped with additional weapons and stores on external hardpoints, although this compromises its stealth capabilities. These external hardpoints can accommodate fuel tanks, additional missiles, or other mission-specific equipment.

Overall, the armament of the Lockheed Martin F-22 Raptor is tailored to its role as an air superiority fighter, providing it with the capability to engage and neutralize enemy aircraft and ground targets with precision and lethality.

Dimensions of the Lockheed Martin F-22 Raptor

The Lockheed Martin F-22 Raptor, a fifth-generation stealth fighter aircraft, has the following dimensions:

1. Length: Approximately 18.92 meters (62 feet 1 inch).
2. Wingspan: Approximately 13.56 meters (44 feet 6 inches).
3. Height: Approximately 5.08 meters (16 feet 8 inches).

These dimensions provide the F-22 Raptor with the necessary size and aerodynamic characteristics to accommodate its advanced avionics, weapons systems, and stealth features while ensuring optimal performance in air combat and strike missions.
