Lokhandwala Minerva

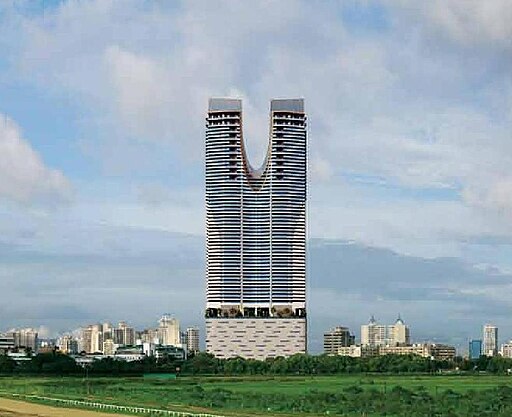

Lokhandwala Minerva is a landmark residential skyscraper complex located in Mahalaxmi, South Mumbai. Developed by Lokhandwala Infrastructure, this twin-tower project redefines luxury living and engineering excellence in one of India’s most premium urban locales. With its commanding height, panoramic views, and cutting-edge amenities, Minerva is among the tallest residential buildings in India and a symbol of Mumbai’s vertical transformation.

Project Overview and Urban Context

Strategic Location

Situated in Mahalaxmi, Lokhandwala Minerva enjoys proximity to the iconic Mahalaxmi Racecourse, Haji Ali Dargah, and the Arabian Sea. The location offers seamless connectivity to South Mumbai, the Western suburbs, and the Bandra-Worli Sea Link. It is also close to major business districts, hospitals, schools, and cultural landmarks.

Architectural Vision

Designed by Hafeez Contractor, the architectural concept of Minerva emphasizes symmetry, verticality, and opulence. The twin towers rise in parallel, creating a striking silhouette against the Mumbai skyline. The design integrates modern aesthetics with functional planning, ensuring optimal space utilization and natural light penetration.

Structural and Technical Parameters

Building Dimensions

Total Height: Approximately 301 meters (roof height)
Floors: 78 floors per tower
Total Towers: 2 identical towers
Total Apartments: Over 300 luxury residences
Plot Area: ~5 acres

Structural System

Core Structure: Reinforced concrete core with shear walls and outriggers
Floor System: Flat slab construction with high-strength concrete (M60 grade and above)
Column Layout: Optimized for large spans and minimal intrusion into living spaces
Wind Load Design: Engineered to withstand wind speeds up to 44 m/s, in compliance with IS 875 Part 3

Foundation and Substructure

Foundation Type: Deep pile foundation with bored cast-in-situ piles reaching depths of 50–60 meters
Basement Levels: 4 levels for parking, services, and mechanical systems
Seismic Design: Compliant with Zone III seismic requirements under IS 1893

Facade and Envelope Engineering

Exterior Cladding

Material: High-performance double-glazed curtain wall system
Thermal Properties: Low-E glass with U-value of ~1.2 W/m²K
Acoustic Insulation: STC rating of 40–45 dB for facade elements

Solar and Daylight Optimization

SHGC: Optimized to reduce solar heat gain while maximizing daylight
Shading Devices: Integrated vertical fins and horizontal ledges for passive shading
Natural Ventilation: Operable windows in select areas for cross-ventilation

Mechanical, Electrical, and Plumbing (MEP) Systems

HVAC Systems

Cooling Type: VRV (Variable Refrigerant Volume) systems for individual zone control
Ventilation: Mechanical ventilation with fresh air intake and exhaust systems
Humidity Control: Integrated dehumidifiers for monsoon season comfort

Electrical Systems

Power Supply: Dual grid connection with automatic transfer switch (ATS)
Backup Power: Diesel generators with 100% backup for all residential and common areas
Lighting: LED fixtures with motion sensors and daylight harvesting in common areas

Plumbing and Water Systems

Water Supply: Pressurized water system with filtration and softening units
Greywater Recycling: Dual plumbing system for reuse in flushing and landscaping
Rainwater Harvesting: Collection tanks with filtration and overflow control

Sustainability and Green Building Features

Certifications

IGBC Rating: Targeted Gold certification under the Indian Green Building Council
Energy Efficiency: Designed to reduce energy consumption by 30% compared to conventional buildings

Eco-Friendly Systems

Solar Panels: Installed on rooftops for common area lighting and water heating
Waste Management: Segregated waste collection, composting units, and recycling stations
Low-Emission Materials: Use of low-VOC paints, adhesives, and sealants

Water Conservation

Low-Flow Fixtures: Installed in all apartments and common areas
Smart Irrigation: Drip irrigation system with moisture sensors for landscaped areas

Vertical Transportation and Safety Systems

Elevator Systems

Total Elevators: 10 per tower, including service and fireman lifts
Speed: High-speed elevators operating at up to 6.5 m/s
Smart Dispatch: Destination control systems to reduce wait times and energy use

Fire Safety and Emergency Systems

Sprinkler System: Full coverage with zoned control and pressure regulation
Smoke Management: Pressurized stairwells and smoke extraction fans
Refuge Areas: Located every 15 floors, compliant with NBC guidelines

Amenities and Lifestyle Features

Residential Units

Apartment Sizes: Ranging from 3 BHK (~200 m²) to 6 BHK duplexes (~600 m²)
Interior Finishes: Imported marble, modular kitchens, and smart home automation
Balconies: Cantilevered balconies with glass railings and sea views

Common Amenities

Sky Deck: Panoramic viewing deck on the top floor
Clubhouse: Multi-level clubhouse with gym, spa, and indoor games
Swimming Pools: Infinity-edge pool, kids’ pool, and jacuzzi
Banquet Hall: Designed for private events and community gatherings
Mini-Theatre: Soundproofed screening room with luxury seating

Connectivity and Infrastructure

Transport Access

Road Connectivity: Direct access to NM Joshi Marg and proximity to the Eastern Express Highway
Rail Access: Close to Mahalaxmi and Lower Parel railway stations
Parking: Automated multi-level parking system with over 800 car spaces

Digital Infrastructure

Telecom Backbone: Fiber-optic connectivity with high-speed internet and IPTV
Smart Building Systems: IoT-enabled sensors for lighting, HVAC, and security
Security Systems: 24/7 surveillance, biometric access, and visitor management

Conclusion

Lokhandwala Minerva stands as a testament to Mumbai’s architectural ambition and engineering prowess. With its towering height, twin-tower symmetry, and luxurious amenities, it offers a lifestyle that blends opulence with sustainability. Designed for the future, Minerva is not just a residential complex—it’s a vertical community that redefines urban living in India’s financial capital.
