Sofitel Mexico Reforma

Sofitel Mexico Reforma

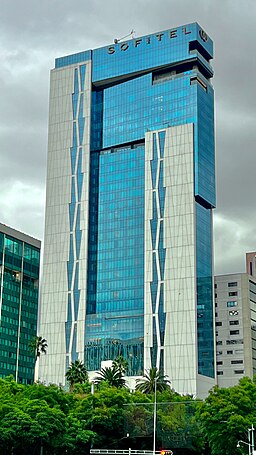

Sofitel Mexico Reforma stands as a symbol of refined hospitality and engineering excellence on the iconic Paseo de la Reforma. Rising 42 stories above the historic city center, this luxury hotel combines French elegance with Mexican craftsmanship. From its sculpted façade to its integrated building systems, the tower delivers an immersive guest experience underpinned by advanced technical solutions.

Site Context and Urban Integration

Strategic Location

Sofitel Mexico Reforma occupies a 5,600 m² plot at the intersection of Reforma and Río Tíber. Its position on a major cultural axis provides panoramic views of Chapultepec Castle, the Angel of Independence, and the city skyline.

Podium and Public Realm

The three-level podium spans 2,800 m² and hosts retail boutiques, a grand lobby, and two event halls. A landscaped terrace on the second level creates a seamless transition to the adjacent green belt, while an underground garage accommodates 300 vehicles and bicycle facilities.

Architectural Design

Massing and Façade Composition

The building silhouette tapers gently above level 30 to reduce wind loads and accentuate verticality. A double-curved curtain wall of low-iron glass wraps the tower in a smooth, undulating envelope. Vertical aluminum fins—set at 12 m intervals—modulate solar exposure and enrich the exterior pattern.

Interior Zoning

• Levels 1–3: Public amenities including reception, restaurants, spa, and fitness center
• Levels 4–15: Standard guest rooms (160 rooms total)
• Levels 16–25: Executive suites and club lounge
• Levels 26–43: Luxury residences and penthouses
• Level 44: Rooftop bar, infinity pool, and observation deck

Each floor plate ranges from 1,200 m² at the podium to 850 m² at the uppermost levels.

Structural Engineering

Core and Frame System

The lateral load system relies on a 900 mm-thick reinforced concrete core, which houses elevators, stairs, and services. Peripheral steel moment frames (grade S355) tied to the core via belt trusses at levels 14, 28, and 40 enhance stiffness and control drift.

Floor Construction

Flat slabs of post-tensioned concrete, 220 mm thick, span up to 9 m between core and perimeter. This slab system eliminates beams, reduces floor-to-floor height, and accelerates the casting cycle.

Foundation System

Geotechnical Profile

Subsurface investigations reveal 8 m of reclaimed fill over competent lacustrine clays. Groundwater sits at 4 m below grade, requiring a watertight excavation support system.

Pile-Raft Foundation

A 1.0 m-thick raft sits atop 180 bored piles, each 1.0 m in diameter and extended 30–45 m into the soil. The hybrid foundation limits total settlement to under 30 mm and provides high bearing capacity.

Building Envelope and Thermal Performance

Curtain Wall Specifications

• Double-glazed low-E units (12 / 16 / 6 mm configuration)
• U-value: 0.24 W/m²·K
• Solar heat gain coefficient: 0.30
• Ventilated cavity: 150 mm to promote natural purge

Horizontal sunshades on east and west façades reduce glare during morning and afternoon hours by up to 35%.

Air Tightness and Moisture Control

Silicone-sealed gaskets at panel joints achieve an air-leakage rate of 0.8 m³/h·m² at 300 Pa. A continuous drainage plane behind the cladding diverts water to weep holes, preventing moisture intrusion.

Mechanical, Electrical, and Plumbing (MEP) Systems

HVAC Configuration

The central plant comprises three centrifugal chillers (3,200 kW each) and two condensing boilers (4,500 kW total). Air handling units deliver 12 L/s per guest room, and variable-air-volume (VAV) boxes adapt to occupancy. Heat-recovery wheels reclaim 70% of exhaust energy.

Electrical Distribution

A main 3,000 kVA transformer feeds a 400/230 V, 50 Hz network. Dual bus-tie switches and two 1,500 kVA diesel generators ensure uninterrupted power for critical loads. LED lighting with DALI controls reduces electrical consumption by 28%.

Plumbing and Water Reuse

Domestic water demand is 120 L/person/day. A greywater recycling system treating 65% of wastewater services toilets and irrigation. A 250 m³ rainwater cistern captures seasonal rains for landscape use.

Vertical Transportation

Elevator Arrangement

• Seven high-speed passenger elevators (4 m/s) in two banks
• Two service elevators (1,800 kg capacity) serving all floors
• One firefighter elevator with pressurization and backup power

Sky lobbies at levels 15 and 28 segregate low- and high-rise traffic, minimizing wait times and reducing hoistway requirements.

Fire Protection and Life Safety

Egress and Pressurization

Three pressurized stair cores, each 2.2 m wide, cater to an occupant load of 2,400. Pressurized corridors on sky-lobby floors prevent smoke infiltration, and fire doors close automatically on alarm.

Detection and Suppression

An addressable fire-alarm system integrates 650 smoke detectors and 200 heat sensors. Wet-pipe sprinklers deliver 0.75 L/min·m² density. Two fire pumps provide 1,000 L/min at 10 bar to ensure coverage of all areas.

Sustainability and Certifications

Green Building Targets

Sofitel Mexico Reforma aims for LEED Platinum and WELL Gold. Key strategies include:

• Photovoltaic array: 340 kW peak on rooftop
• Energy Use Intensity: 68 kWh/m²·year (25% below baseline)
• Green roofs spanning 1,200 m² for stormwater retention and biodiversity

Automated shading and daylight sensors further reduce HVAC and lighting loads.

Construction Methodology

Modular Prefabrication

Bathroom modules and MEP racks were prefabricated off-site, cutting on-site labor by 38%. Curtain-wall units arrived pre-glazed and tested, allowing a façade installation rate of 50 m² per day.

BIM Coordination and Quality Control

A fully integrated BIM model resolved 2,300 clashes prior to construction. Laser scanning verification ensured substructure and core dimensions were within ±15 mm tolerances.

Technical Specifications Summary

Future-Proofing and Innovations

The hotel’s building management system is designed for seamless integration of emerging technologies, from electrochromic glazing to AI-driven predictive maintenance. Provision for electric vehicle charging stations in the garage and modular plant rooms ensures adaptability to evolving guest expectations and sustainability standards.
